CNC Press Brakes
Place of Origin: |
, China (Mainland) |
Product Detail
Model No.:
ZYB-80Ton
Raw Material:
Sheet / Plate Rolling
Extra Services:
Machining
Certification:
CE
Power:
Cnc
Machine Type:
Beading Machine
Automation:
Automatic
Material / Metal Processed:
Carbon Steel

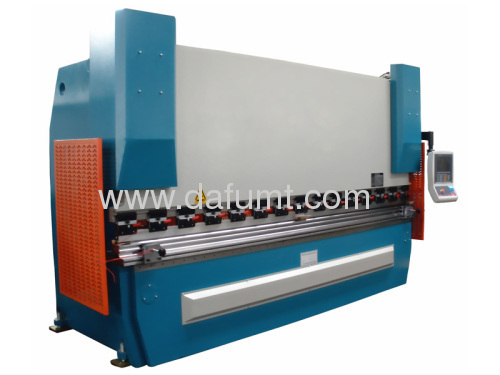

4+1 axes CNC Press brake.
Item | ZYB-80Ton×2500mm | ZYB-80Ton×3200mm | ZYB-80Tonn×4000mm |
Nominal force(KN) | 800 | 800 | 800 |
Bending length(mm) | 2500 | 3200 | 4000 |
Distance between Poles(mm) | 1900 | 2700 | 3500 |
Depth of throat(mm) | 350 | 350 | 350 |
Slider travel(mm) | 170 | 170 | 170 |
Worktable height(mm) | 800 | 800 | 800 |
Die loading height | 380 | 380 | 380 |
Main power(Kw) | 7.5 | 7.5 | 7.5 |
Number of cylinder compensation | 3 | 3 | 3 |
CNC control axes | 4+1 | 4+1 | 4+1 |
Back gauge travel(mm) | 500 | 500 | 500 |
Back gauge speed(mm/s) | 200 | 200 | 200 |
Weight(KGs) | 7000 | 7800 | 8600 |
Overall dimension(L×W×H mm) | 3100×1550×2100 | 3500×1550×2100 | 4300×1550×2100 |
