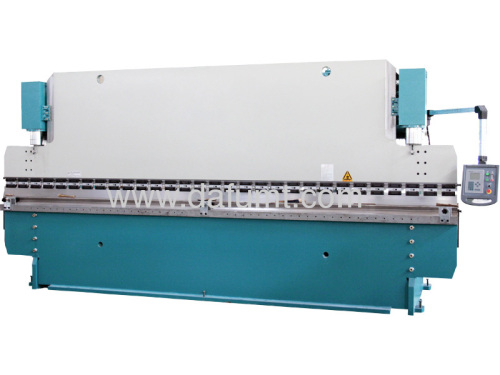

plate bender
Place of Origin: |
Jiangsu, China (Mainland) |
Product Detail
Model No.:
WC67Y-80Ton
Raw Material:
Sheet / Plate Rolling
Extra Services:
Machining
Certification:
CE
Brand Name:
Dafu
Power:
Hydraulic
Machine Type:
Press Brake
Automation:
Manual
Material / Metal Processed:
Carbon Steel
High quality hydraulic Press brake with good price and excellent performance.
Item | WC67Y-80Ton×2500mm | WC67Y-80Ton×3200mm | WC67Y-80Ton×4000mm |
Nominal force(KN) | 800 | 800 | 800 |
Worktable length(mm) | 2500 | 3200 | 4000 |
Distance between holes(mm) | 1990 | 2560 | 3000 |
Depth of throat(mm) | 300 | 320 | 320 |
Slider travel(mm) | 100 | 100 | 100 |
Max open height(mm) | 320 | 350 | 350 |
Main power(Kw) | 7.5 | 7.5 | 7.5 |
Weight(KGs) | 5000 | 6020 | 7000 |
Overall dimension(L×W×H mm) | 2500×1400×2300 | 3200×1500×2300 | 3200×1300×2210 |
